Depaneling
Depaneling is a process step in high-volume electronics assembly production. In order to increase the throughput of printed circuit board(PCB) manufacturing and surface mount(SMT) lines, PCBs are often designed so that they consist of many smaller individual PCBs that will be used in the final product. This PCB cluster is called a panel or multiblock. The large panel is broken up or “depaneled” as a certain step in the process.

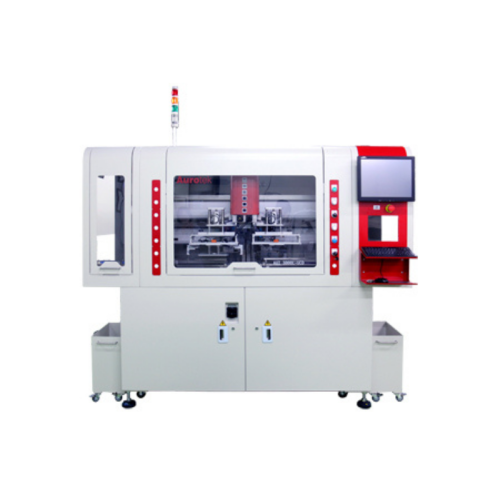

Aurotek – IN-LINE PCB Separator
Key Features
- A fully Loading/ Unloading automatic processing in-line machine.
- 2-way sliding work exchanger to limit the idle time and simultaneously loading and unloading to reaches the utmost output value.
- Friendly Touch Panel with 10x CCD Camera to minimize the time of programming.
- Auto fiducial mark point check and cutting route auto compensation to insure the cutting accuracy.
- Automatic router bit check to prevent the bit break incomplete cutting.
For three decades, Aurotek upholds its reputation and work spirit for sharing high-tech industry experiences, delivering high value-added services and solutions, and helping customers achieve greater value through its introduction of advanced and quality components, acquirement of new technology concepts, and constant pursuit of excellence in industrial design.

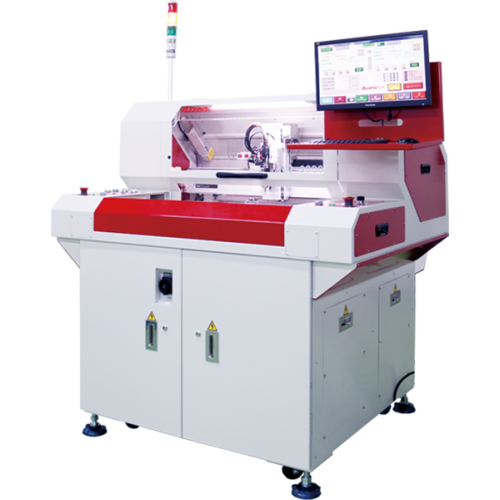

Aurotek – OFF-LINE PCB SEPARATOR
Key Features:
- 2-way Sliding Exchanger
This work exchanger provides a simultaneously in-and-out working space to limit the idle time, which in turn reaches the utmost output value - Route Duplication
The user only needs to set two referent points to duplicate a same route in saving programming time - Routing Bit Sectioning
The user may set a designated distance, and have the routing bit shift-up or -down in order to make a new section of touting bit to cut boards for multiplying the life of the routing bit. - Friendly GUI
Windows XP system and Graphical User Interface (GUI) is adopted, which enables the user to learn and use the program easily. A 10 x zoom-in image is shown on screen for setting all points.
For continuing the past successful experience, we keep improving our R&D progress and providing complete solution for global customers.
